Box Strapping Machines Automatic Strapping machines

Fully Automatic Side Seal (A-93Y)

Fully Automatic Side Seal (A-93Y)

SIDE SEAL AUTOMATIC STRAPPING MACHINE

SCOPE OF APPLICATION
FULLY AUTOMATIC CONVEYOR LINE FOR STRAPPING FURNITURE, REFRIGERATORS AND BULKY OBJECTS., ETC.



FEATURES
CE safety standard design Sealing head place on side of housing for most flexibility on-line with conveyor
Low voltage microprocessor control



OPTIONS
Arch size bigger than 1250Hx1200W is available upon request Single or dual photo cell for auto strapping control together with additional electric box
Bulk reel with inside Dia. 400mm and outside Dia. 750mm #304,#316 Stainless steel construction and housing for marine-fish, meat industry application (A-72YM)
Foot pedal switch control Short feeding alarm system
SPECIFICATIONS
Strapping Speed : Approx. 24 straps/Min.
Tension Range : 15~70Kgs
Strap Width : 9, 12, 15.5mm of P.P strap
Reel Inside Dia : 200, 230 & 280mm
Reel Outside Dia : 480mm
Power : AC 220/230/380/400V, 50/60HZ, 3phase
Power Consumption : 0.72KW (standard)
Arch Size : 850H x 600Wmm (standard)
Sealing Head Height : 650mm

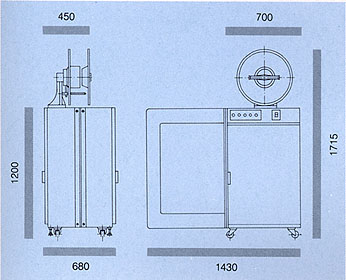

Layout Dimension : 1715H x 1430W x 680Dmm
Identification : H-height, W-width, D-depth
*Specification subject to change without prior notice

VARIOUS ARCH SIZE AVAILABLE:

H/W 650 850 1050 1250
400
600   Standard
800
1000
1200
