We at JOIN PACK MACHINES lay a lot of stress on providing Timely Preventive & Breakdown Service for our machines. According to our business philosophy, this aspect of our Operation is THE Most Important Part of our day-to-day working. Our Sales & Service Engineers are technically prepared in training your Personnel in operating these Machines and also in basic trouble-shooting & preventive maintenance

Box Strapping Machines Automatic Strapping machines

Standard Stand Alone Model (A-93E)

Standard Stand Alone Model (A-93E)

AUTOMATIC STRAPPING MACHINE

FEATURES
CE Marked Machine High Speed Strapping-1440 Straps per hour
No Lubrication Required Aluminum Alloy Die-Casted Main Body Block- Rust Free / High Consistent Performance Level
Sealing Head: with advanced features such as Reversible Cutter & Improved Cam Profiles for longer life Made for 24 Hour Continuous Duty
Operation through Front-Body Panel or Floating Switch Instant heating-just 40 seconds
Very Low Power Consumption-720 W Three Phase/Single Phase models available



OPTIONS
CE standard Single phase power system, 110/220V, 50/60HZ (A-93ES)
Foot pedal Outside tension
SPECIFICATIONS
Strapping Speed : 2.5 sec/strap (60Hz)
Tension : 15-70kg (mech. adjustor)
Sealing Method : heating element
Strap Width : 9, 12, 15.5mm of PP strap
Reel outside Dia : 480mm
Reel inside Dia : 200mm, 230mm, 280mm
Arch Size : 850W x 600Hmm (standard)
Table Height : 805mm from floor level
Power : AC 220/230/380/400V, 50/60HZ, 3phase
Power Consumption : 0.72KW (standard)

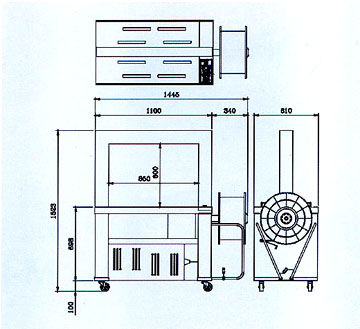

Layout Dimension : 1530H x 1417W x 630D (standard)
*Specification subject to change without prior notice

VARIOUS ARCH SIZE AVAILABLE

H/W 650 850 1050 1250
400
600   STANDARD
800
1000
1200
