We at JOIN PACK MACHINES lay a lot of stress on providing Timely Preventive & Breakdown Service for our machines. According to our business philosophy, this aspect of our Operation is THE Most Important Part of our day-to-day working. Our Sales & Service Engineers are technically prepared in training your Personnel in operating these Machines and also in basic trouble-shooting & preventive maintenance

Box Strapping Machines Pallet Strapping machines

MOBILE PALLET STRAPPING MACHINE (S-72YO)

MOBILE PALLET STRAPPING MACHINE (S-72YO)


SCOPE OF APPLICATION
Pallet strapping for Warehousing, Logistic Industry and vary Industrial usage.

FEATURES
Mobile track: the track (sword) move through the pallet when press start button then the track move back automatically after the strapping completed. Straps:Available both for Polyester PET and Polypropylene PP.
Auxiliary feeding: auto feeding from top to sealing head. Dispenser: 200,230,280mm interchangeable with electronic dispenser braking system.
Heating time, weld cooling time adjustable. Single-phase power supply.
Big Caster. Long power cord with reel to be stored in machine.
To start strapping automatically when the strap fed in the sealing position. OPTIONS : I.D. 406mm Steel Dispenser.




Hinge Track - space saving

Mobile track

Auxiliary Feeding
SPECIFICATIONS
Strapping speed: 2.5sec / cycle (60HZ)
Tension 15-70kg
Sealing method Heating element
Strap Dispenser 200mm, 230mm, 280mm, 406mm(option)
Packing size Pallet high clearance: 90mm Mini.
Strap 9mm (?"),12mm(�"), 15mm(?"). PP or PET strap
Table height 825mm from ground level
Power connection AC 110/220/230V, 50/60HZ, 1phase
Power consumption 0.72KW
Layout dimension 900mm (L) x 765mm (W) x 1290mm (H)
*Specification subject to change without prior notice

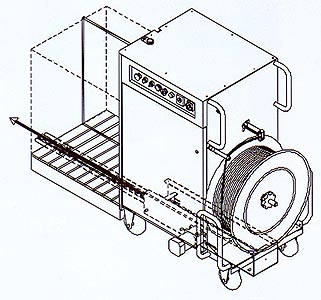

Layout Diagram
